1D, 1.5D, 3D, and 5D elbows are precision-crafted pipe fittings designed to redirect fluid flow in piping systems. The “D” stands for the nominal pipe diameter, which determines the bend radius of the elbow. These fittings are engineered to reduce flow resistance, pressure drops, and turbulence, tailored to meet specific application requirements. They come in a variety of materials and standards, ensuring a smooth flow transition, robust structural integrity, and a long lifespan. Their adaptability makes them vital components in industrial piping networks.

1D Elbow Price List in Doha, Stainless Steel 1D Elbow Supplier in Al Rayyan, ANSI/ASME B16.9 1.5D Elbow Exporter in Al Shahaniya, SS 3D Elbow Supplier in Al Khor, Carbon Steel 5D Elbow Exporter in Qatar, Alloy Steel ASME B16.25 3D Elbow Size Chart, ANSI B19.28 5D Elbow Price in Doha, MSS-SP-43 1D Elbow in Qatar, Duplex Steel 1.5D Elbow Supplier in Umm Salal, Nickel Alloy 5D Elbow Stockist in Al Rayyan, Low Temperature Carbon Steel 5D Elbow Exporter in Doha

1D, 1.5D, 3D, and 5D elbows are crafted from materials like carbon steel, stainless steel, alloy steel, duplex steel, and nickel alloys. These materials offer impressive tensile strength, toughness, and resistance to internal pressure and mechanical stress. Through proper heat treatment and forming techniques, they achieve consistent wall thickness, precise dimensions, and excellent weldability. While the mechanical properties can differ based on the material grade, they all guarantee dependable performance even under high pressure and temperature conditions.

1D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 1D Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 1D Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: 1D Elbow

1.5D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless 1.5D Elbow Size: 1/2″~24″

ERW / Welded / Fabricated 1.5D Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Fitting 1.5D Elbow

3D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ to 36″

Form: Buttweld 3D Elbow, Fitting 3D Elbow

5D Elbow Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Size: 1/2″ to 36″

Form: Butt weld 5D Elbow, Fitting 5D Elbow

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Low Temperature Carbon Steel 1.5D Elbow Exporter in Al Rayyan, 1D Elbow Price List in Al Khor, Stainless Steel 3D Elbow Supplier in Al Rayyan, ANSI/ASME B16.9 1D Elbow Exporter in Al Khor, Alloy Steel 3D Elbow Exporter in Al Shahaniya, ASME B16.9 5D Elbow in Doha, MSS-SP-43 3D Elbow Size Chart, Alloy Steel ASME B16.25 Price in Qatar, Pipe Fittings 1.5D Elbow Manufacturer Weight Chart, Fitting 1.5D Elbow Supplier in Doha, Stainless Steel 5D Elbow Stockist in Al Shahaniya.

Why Choose 1D / 1.5D / 3D / 5D Elbow From Yousef Metals?

Choosing 1D / 1.5D / 3D / 5D Elbow from Yousef Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Yousef Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

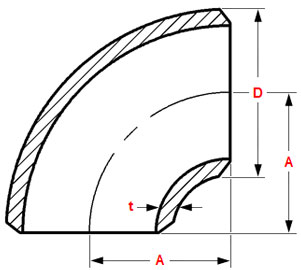

1D Elbow Dimensions

Size			Wall Thickness	Radius	Approx. Weight (kg)
DN		OD	t	A	e
inch	mm	mm	mm	mm	mm	45°	90°
Seamless
1	25	30	1.5	30	12	0.03	0.05
1¼	32	38	1.5	32.5	14	0.03	0.08
1½	40	44.5	1.5	40	17	0.06	0.14
2	50	57	1.5	52.5	22	0.10	0.20
2½	65	76	2	70	29	0.23	0.46
3	80	89	2	82.5	34	0.32	0.64
4	100	108	2.5	100	41	0.58	1.16
5	125	133	2.5	125	52	0.90	1.80
6	150	159	2.5	150	62	1.30	2.60
7	175	194	3	180	75	1.90	3.80
8	200	219	3	210	87	3.00	6.00
10	250	267	3	255	106	4.44	8.88
12	300	324	4	305	126	8.55	17.10
14	350	368	4	352.5	146	11.30	22.60
16	400	419	4	400	166	16.40	32.80
18	450	457	4.5	457	189	20.45	40.90
20	500	508	5	508	210	28.10	56.20
24	600	610	5	610	253	40.50	81.00
28	700	711	6	711	295	66.00	132.00
32	800	813	6	813	337	86.50	173.00
36	900	914	8	914	379	145.50	291.00

1.5D Elbow Dimensions

Inside	Wall	Centreline	Weight
Diameter	Thickness	Radius	Per Piece
‘A’ mm	‘B’ mm	‘C’ mm	kilos
15	1.50	30	0.03
20	1.50	35	0.04
25	1.50	32.5	0.06
32	1.50	45	0.11
40	1.50	60	0.20
50	2.00	73	0.31
65	2.00	95	0.52
80	2.00	123	0.77
100	2.00	150	1.20
100	3.00	150	1.79
125	2.00	188	1.88
150	2.00	225	2.69
150	3.00	225	4.09

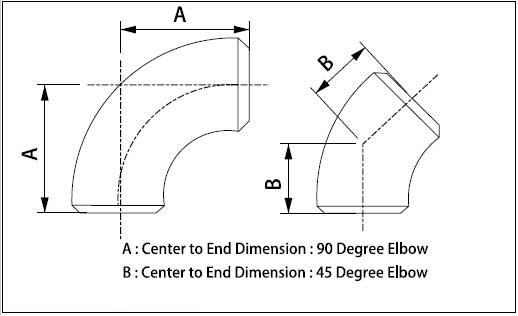

3D Elbow Dimensions

NPS	OD	A	B
3/4	26.7	57	24
1	33.4	76	31
1-1/4	42.2	95	39
1-1/2	48.3	114	47
2	60.3	152	63
2-1/2	73.0	190	79
3	88.9	229	95
3-1/2	101.6	267	111
4	114.3	305	127
5	141.3	381	157
6	168.3	457	189
8	219.1	610	252
10	273.0	762	316
12	323.8	914	378
14	355.6	1067	441
NPS	OD	A	B
16	406.4	1219	505
18	457.0	1372	568
20	508.0	1524	632
22	559.0	1676	694
24	610.0	1829	757
26	660.0	1981	821
28	711.0	2134	883
30	762.0	2286	964
32	813.0	2438	1010
34	864.0	2591	1073
36	914.0	2743	1135
38	965.0	2896	1200
40	1016.0	3048	1264
42	1067.0	3200	1326
44	1118.0	3353	1389
NPS	OD	A	B
46	1168.0	3505	1453
48	1219.0	3658	1516

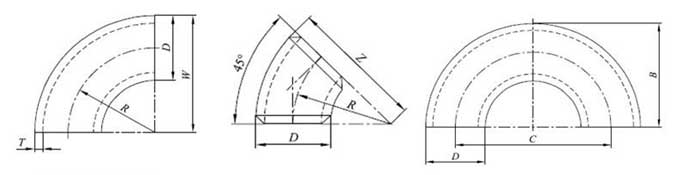

5D Elbow Dimensions

DN	D	R	C	B – W – Z
15	21.3	42.5	85	53
20	26.9	57.5	115	71
25	33.7	72.5	145	89
	38	82.5	165	101
32	42.4	92.5	185	114
40	48.3	109.5	219	134
	51	122.5	245	149
	57	130	260	158
50	60.3	137.5	275	168
	70	160	320	195
65	76.1	175	350	213
80	88.9	207.5	415	252
	101.6	235	470	286
	108	253	506	306
100	114.3	270	540	327
	133	311.5	623	378
125	139.7	330	660	400
	159	375	750	454
150	168.3	390	780	474
200	219.1	515	1030	624
	244.5	580	1160	702
250	273	650	1300	786
300	323.9	770	1540	932
350	355.6	850	1700	1 028
400	406.4	970	1940	1 173
450	457	1 122	2 244	1 350
500	508	1 245	2 490	1 500
550	559	1 398	2 796	1 677
600	610	1 525	3 050	1 830
650	660	1 650	3 300	1 980
700	711	1 778	3 556	2 133
750	762	1 905	3 810	2 286
800	813	2 033	4 066	2 439
850	864	2 155	4 310	2 587
900	914	2 285	4 570	2 742
1 000	1 016	2 540	5 080	3 048
1 050	1 067	2 665	5 335	3 201
1 100	1 118	2 790	5 580	3 354
1 150	1 168	2 915	5 830	3 504
1 200	1 219	3 050	6 100	3 657

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of 1D / 1.5D / 3D / 5D Elbow in Doha, Qatar

Yousef Metals, one of the leading suppliers of 1D / 1.5D / 3D / 5D Elbow in Doha, Qatar, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Yousef Metals has established itself as a trusted name for premium stainless steel products across the Qatar.

Stainless Steel 1D Elbow Exporter in Al Shahaniya, Carbon Steel 5D Elbow in mm, Alloy Steel 1D Elbow Manufacturer in Qatar, Super Duplex 5D Elbow in Al Shahaniya, Nickel Alloy 5D Elbow, Low Temperature Carbon Steel 3D Elbow Supplier in Qatar, ANSI/ASME B16.9 5D Elbow Price List in Doha, SS 1D Elbow Distributor in Al Rayyan, Alloy Steel ASME B16.25 1D Elbow Supplier in Umm Salal, Pipe Fittings 3D Elbow Distributor in Al Rayyan

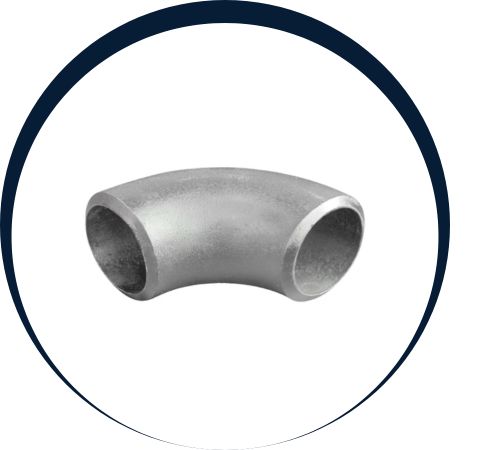

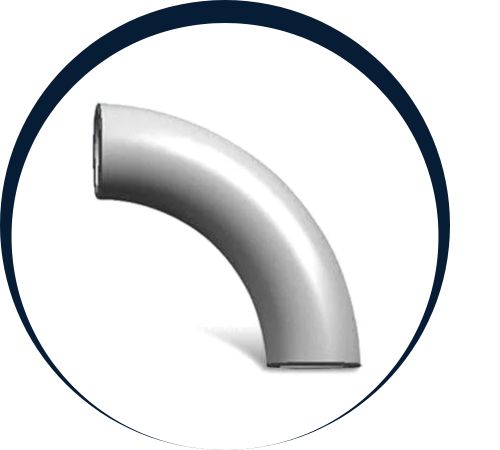

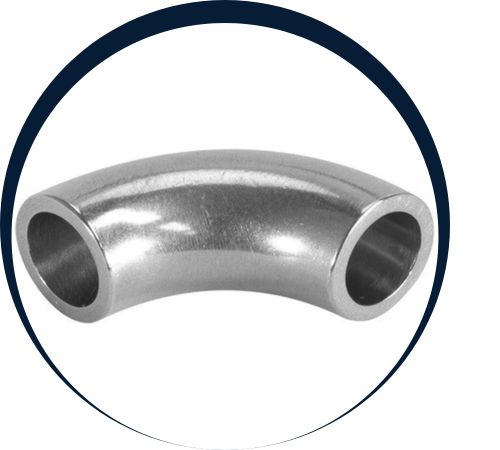

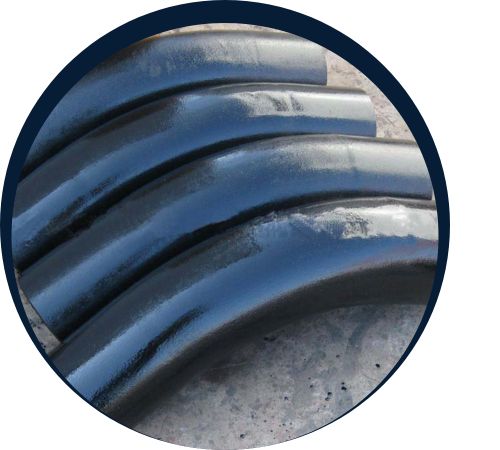

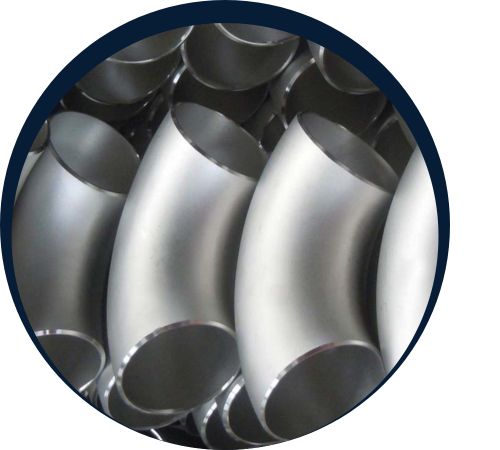

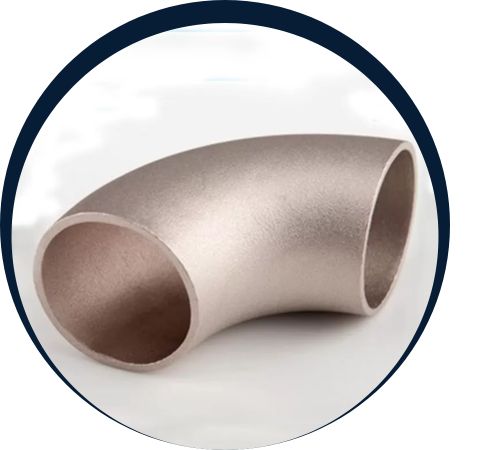

Types of 1D / 1.5D / 3D / 5D Elbow

Are Custom Sizes Available for 1D / 1.5D / 3D / 5D Elbow?

Yes, we provide custom sizes of 1D / 1.5D / 3D / 5D Elbow to match your exact project requirements. Yousef Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@yousefmetals.com.

5D Elbow Supplier in Al Rayyan, Stainless Steel 5D Elbow Weight Chart, Carbon Steel 3D Elbow Exporter in Al Wakrah, Alloy Steel 1D Elbow Manufacturer in Al Shahaniya, Duplex Steel 1.5D Elbow Price List in Al Khor, Super Duplex 3D Elbow Sizes in mm, Nickel Alloy 1.5D Elbow Distributor in Qatar, Low Temperature Carbon Steel 1.5D Elbow Distributor in Al Khor

1D / 1.5D / 3D / 5D Elbow Uses

These elbows find extensive use in sectors like oil and gas, petrochemicals, chemical processing, power generation, and industrial piping systems. 1D and 1.5D elbows are ideal for tight spaces, while 3D and 5D elbows are favored in high-flow and high-pressure environments to minimize turbulence and erosion. Their applications span pipelines, refineries, offshore installations, power plants, and process piping, where ensuring smooth flow and durability is crucial.
