Long and Short Stub Bend Manufacturer, Supplier and Exporter in Doha, Qatar

Yousef Metals stands out as a trusted manufacturer and supplier of Long and Short Stub Bends right in the heart of Doha, Qatar, catering to a diverse array of industrial sectors. Renowned for their precision engineering and rigorous quality control, the company provides stub bends that guarantee smooth directional flow in piping systems. Crafted to meet international standards, these fittings are built for durability, dimensional accuracy, and resistance to corrosion. With state-of-the-art production facilities and a talented workforce, Yousef Metals is committed to delivering customized solutions tailored to specific project needs, all while ensuring timely delivery and competitive pricing for clients throughout Qatar and the Middle East.

Stainless Steel Long Stub Bend Price List in Al Wakrah, Copper Nickel Long Stub Bend Distributor in Doha, Super Duplex Steel Short Stub Bend Short Bend Supplier in Al Rayyan, Butt Weld Long Stub Bend Sizes in mm, Nickel Alloy Long Stub Bend Manufacturer in Al Shahaniya, Carbon Steel Long Stub Bend Thickness, Super Duplex Steel Short Stub Bend Supplier in Qatar, SMO 254 Welded Short Stub Bend Exporter in Al Khor, Hastelloy Short Stub Bend Supplier in Al Shahaniya

The Long and Short Stub Bends are made from top-quality materials like carbon steel, stainless steel, alloy steel, and duplex steel. Their chemical makeup is meticulously controlled to ensure outstanding strength, corrosion resistance, and thermal stability. On the mechanical side, these stub bends boast high tensile strength, excellent ductility, and robust impact resistance. They can handle high pressure, temperature variations, and mechanical stress without losing their shape. Proper heat treatment further enhances their toughness, hardness, and fatigue resistance, promising a long service life even in demanding industrial settings.

Specification of Long Stub End

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASME B16.9 Long stub end
Long type stub end Pipe Fittings size	Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″
Stainless Steel Long Stub Ends Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Socket Weld Long Stub End Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Long pattern stub end Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
Seamless Long Stub End Type	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Stainless Steel Long Stub Ends Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Long pattern stub end Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Long stub ends	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 Long stub ends are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Long stub ends have a thicker wall for higher-pressure applications.

Specification of Short Type Stub End

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASME B16.9 short stub end
short pattern stub ends Pipe Fittings size	Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″
Buttweld Short Stub End Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASTM A403 SS Short Stub End Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ANSI B16.9 Shortstub End Fittings Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
Short neck stub end Type	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Buttweld Short Stub End Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
ANSI B16.9 Shortstub End Fittings Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for short stub end	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 short stub end are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 short stub end have a thicker wall for higher-pressure applications.

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Nickel Alloy Short Stub Bend in Al Rayyan, Duplex Steel Buttweld Long Stub Bend Distributor in Al Shahaniya, Alloy Steel Long Stub Bend Supplier in Mesaieed, Copper Nickel Alloy Short Stub Bend Weight Chart, Incoloy Long Stub Bend Exporter in Qatar, SS Buttweld Long Stub Bend Manufacturer in Al Rayyan, Duplex Steel Long Stub Bend Price List in Al Khor, Hastelloy Long Stub Bend Sizes in mm, Monel Long Stub Bend Distributor in Doha

Why Choose Long and Short Stub Bend ?

Choosing Long and Short Stub Bend from Yousef Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Yousef Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

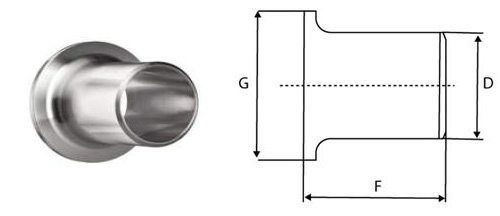

Dimensions of Long Stub Ends

minal Pipe Size	Outside diameter of barrel		Length (F)		Radius (R)	Diameter (G)
minal Pipe Size	Minimum	Maximum	Long Pattern	Short Pattern	Radius (R)	Diameter (G)
1/2″	20.5	22.8	76	51	3	35
3/4″	25.9	28.1	76	51	3	43
1″	32.6	35.0	102	51	3	51
1 1/4″	41.4	43.6	102	51	5	64
1 1/2″	47.5	49.9	102	51	6	74
2″	59.5	62.4	152	64	8	92
2 1/2″	72.2	75.3	152	64	8	105
3″	88.1	91.3	152	64	10	127
3 1/2″	100.8	104.0	152	76	10	140
4″	113.5	116.7	152	76	11	157
5″	140.5	144.3	203	76	11	186
6″	167.5	171.3	203	89	13	216
8″	218.3	222.1	203	102	13	270
10″	272.3	277.2	254	127	13	324
12″	323.1	328.0	254	152	13	381
14″	354.8	359.9	305	152	13	413
16″	405.6	411.0	305	152	13	470
18″	456.0	462.0	305	152	13	533
20″	507.0	514.0	305	152	13	584
22″	558.0	565.0	305	152	13	641
24″	609.0	616.0	305	152	13	692

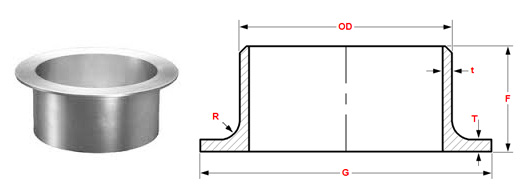

Dimensions of Short Stub End

Nominal Pipe Size	Outside diameter of barrel		Length (F)		Radius (R)	Diameter (G)
Nominal Pipe Size	Minimum	Maximum	Long Pattern	Short Pattern	Radius (R)	Diameter (G)
1/2″	20.5	22.8	76	51	3	35
3/4″	25.9	28.1	76	51	3	43
1″	32.6	35.0	102	51	3	51
1 1/4″	41.4	43.6	102	51	5	64
1 1/2″	47.5	49.9	102	51	6	74
2″	59.5	62.4	152	64	8	92
2 1/2″	72.2	75.3	152	64	8	105
3″	88.1	91.3	152	64	10	127
3 1/2″	100.8	104.0	152	76	10	140
4″	113.5	116.7	152	76	11	157
5″	140.5	144.3	203	76	11	186
6″	167.5	171.3	203	89	13	216
8″	218.3	222.1	203	102	13	270
10″	272.3	277.2	254	127	13	324
12″	323.1	328.0	254	152	13	381
14″	354.8	359.9	305	152	13	413
16″	405.6	411.0	305	152	13	470
18″	456.0	462.0	305	152	13	533
20″	507.0	514.0	305	152	13	584
22″	558.0	565.0	305	152	13	641
24″	609.0	616.0	305	152	13	692

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Long and Short Stub Bend in Doha, Qatar

Yousef Metals, one of the leading suppliers of Long and Short Stub Bend in Doha, Qatar, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Yousef Metals has established itself as a trusted name for premium stainless steel products across the Qatar.

Copper Nickel Short Stub Bend Price List in Al Rayyan, Copper Nickel Log Stub End Supplier in Al Wakrah, Duplex Steel Short Stub Bend Dealer in Doha, Alloy Steel Short Stub Bend Supplier in Al Khor, Carbon Steel Short Stub Bend Fittings Exporter in Qatar, Alloy Steel Straight Short Stub Bend Size Chart, Monel Buttweld Long Stub Bend Price in Al Khor, Super Duplex Steel Long Stub Bend Thickness, Inconel Buttweld Long Stub Bend Supplier in Doha, Carbon Steel Long Stub Bend Stockist in Al Rayyan, Titanium Short Stub Bend Exporter in Al Wakrah

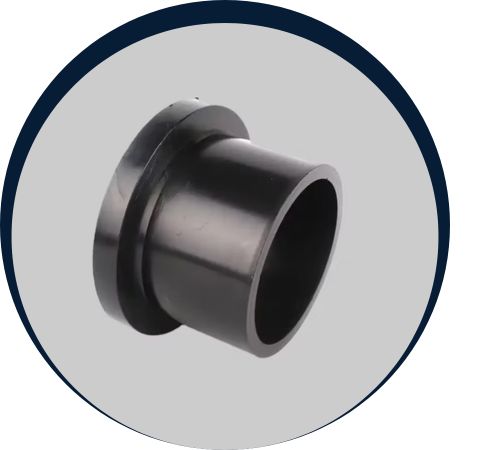

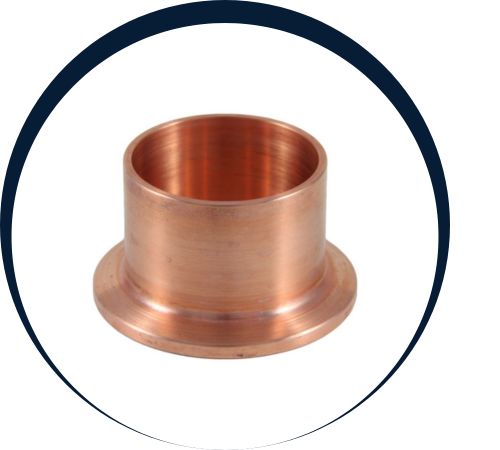

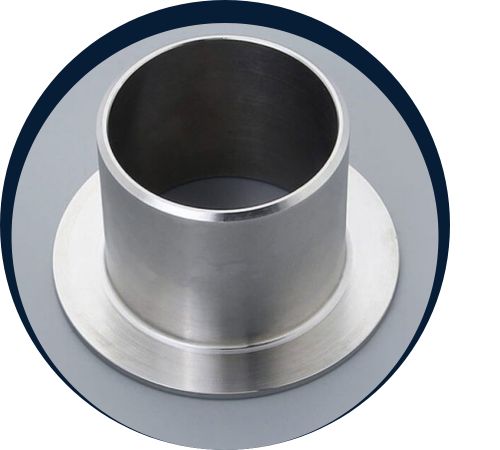

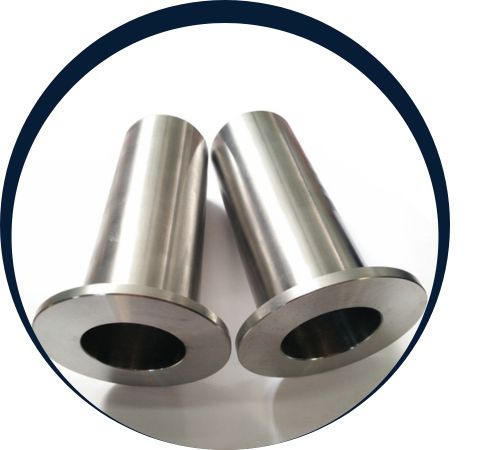

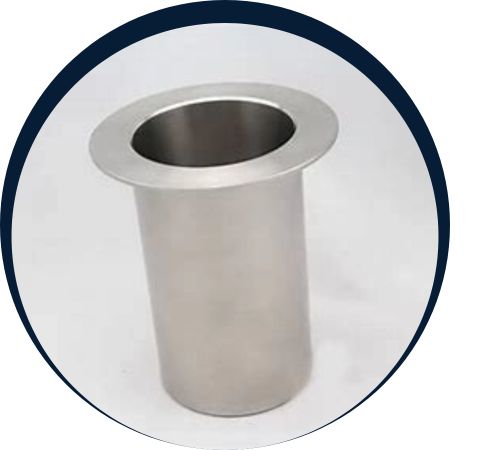

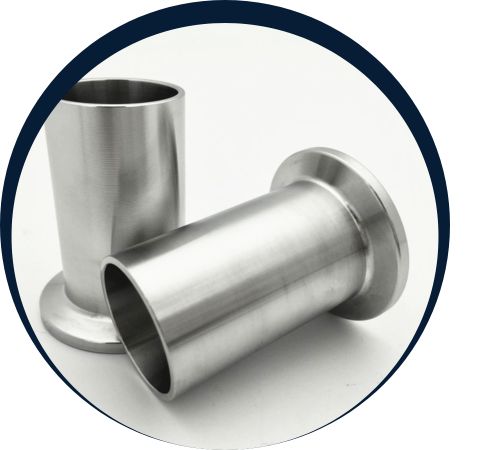

Types of Long and Short Stub Bend

Are Custom Sizes Available for Long and Short Stub Bend ?

Yes, we provide custom sizes of Long and Short Stub Bend to match your exact project requirements. Yousef Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@yousefmetals.com.

Monel Short Stub Bend Size Chart, Stainless Steel Long Stub Bend Price in Doha, Duplex Steel Long Stub Bend Weight Chart, Alloy Steel Long Stub Bend Supplier in Al Rayyan, Incoloy Short Stub Bend Stockist in Al Wakrah, Inconel Long Stub Bend Supplier in Al Shahaniya, Copper Nickel Short Stub Bend Price List in Umm Salal, Alloy Steel Short Stub Bend Exporter in Doha, Carbon Steel Long Stub Bend Exporter in Qatar, Titanium Long Stub Bend Exporter in Al Wakrah, Monel Buttweld Short Stub Bend in Qatar

These Long and Short Stub Bends are essential in piping systems where smooth directional changes are necessary to alleviate stress and boost flow efficiency. They’re commonly found in oil and gas pipelines, petrochemical plants, power stations, water treatment facilities, and offshore installations. These fittings play a crucial role in minimizing pressure loss and turbulence while maintaining structural integrity. Their ability to endure harsh operating conditions makes them perfect for safely transporting fluids, gases, and chemicals, ensuring reliable and efficient performance in critical industrial applications.
