Equal/ Reducing/ Split Tee Manufacturer, Supplier and Exporter in Doha, Qatar

Yousef Metals stands out as a trusted manufacturer and supplier of equal, reducing, and split tees right in the heart of Doha, Qatar. They cater to a variety of industries, including oil & gas, petrochemicals, power generation, marine, and water treatment. Their high-quality pipe fittings are crafted to ensure smooth flow distribution and create strong, leak-proof connections in piping systems. Made from top-notch materials and produced under rigorous quality control, these tees are built to last, offering impressive durability, precise dimensions, and reliable performance even under high pressure and temperature.

Stainless Steel Split Tee Price List in Doha, Copper Nickel Unequal Tee Distributor in Al Wakrah, Super Duplex Steel Reducing Tee Supplier in Doha, ASME B16.9 Split Tee Distributor in Al Wakrah, Butt Weld Reducing Tee Sizes in mm, Nickel Alloy Split Tee Manufacturer in Al Khor, Carbon Steel Unequal Tee Thickness, Super Duplex Steel Reducing Tee Supplier in Al Shahaniya, MSS-SP-43 Pipe Unequal Tee Exporter in Doha, Hastelloy Split Tee Supplier in Qatar

The equal, reducing, and split tees from Yousef Metals are crafted from materials like carbon steel, stainless steel, alloy steel, and corrosion-resistant alloys. This careful selection of materials ensures they possess high strength, toughness, and the ability to withstand pressure, temperature, and chemical exposure. These fittings boast strong mechanical properties, including excellent tensile and yield strength, outstanding impact resistance, and dependable load-bearing capacity. Their sturdy construction guarantees a long service life, dimensional stability, and consistent performance in even the most demanding industrial settings.

Equal Tee Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless Pipe Tee Size: 1/2″~24″

ERW / Welded / Fabricated Pipe Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Pipe Tee, Equal Tee, Fitting Tee, Butt weld Tee

Reducing Tee / Unequal Tee Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated

Seamless Reducing Tee Size: 1/2″~24″

ERW / Welded / Fabricated Reducing Tee Size: 1/2″ (15 NB) to 48″ (1200NB)

Form: Unqual Tee, Reducing Tee

Split Tee Specification

Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN : EN10253-1, EN10253-2

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Size: 2″~36″ 15-1200

Pressure 150#~2500#

Wall Thickness : Sch 10- Sch160

Material : Stainless Steel, Carbon Steel, Alloy Steel, Monel, Hastelloy, Inconel, Incoloy, Nickel Alloy, Copper Nickel, Super Duplex Steel, Super Duplex Steel, Titanium

Form: Split Tees

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Copper Nickel Unequal Tee Price List in Qatar, Copper Nickel Equal Tee Supplier in Al Khor, Duplex Steel Equal Tee Dealer in Umm Salal, Alloy Steel Split Tee Supplier in Mesaieed, Carbon Steel Tee Fittings Exporter in Al Wakrah, Alloy Steel Straight Tees Size Chart, Monel Buttweld Reducing Tee Price in Al Khor, Super Duplex Steel Unequal Tee Thickness, Inconel Buttweld Reducing Tee Supplier in Al Shahaniya, Carbon Steel Reducing Tee Stockist in Al Wakrah, Titanium Split Tee Exporter in Al Khor

Why Choose Equal/ Reducing/ Split Tee From Yousef Metals?

Choosing Equal/ Reducing/ Split Tee from Yousef Metals ensures unmatched quality and long-lasting performance. These Fittings are engineered for superior corrosion resistance, strength, and precision, making them ideal for a wide range of industrial applications. With a strong focus on customer satisfaction, timely delivery, and technical expertise, Yousef Metals provides reliable and high-grade stainless steel solutions tailored to meet your specific project requirements.

Dimensions Of ASTM A403 Equal Tee

NOMINAL PIPE SIZE	OUTSIDE DIAMETER	CENTER TO END	LENGTH
Inch.	OD	C	M
1/2	21.3	25	25
3/4	26.7	29	29
1	33.4	38	38
1 1/4	42.2	48	48
1 1/2	48.3	57	57
2	60.3	64	64
2 1/2	73	76	76
3	88.9	86	86
3 1/2	101.6	95	95
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273.1	216	216
12	323.9	254	254
14	355.6	279	279
16	406.4	305	305
18	457.2	343	343
20	508	381	381
22	559	419	419
24	610	432	432
26	660	495	495
28	711	521	521
30	762	559	559
32	813	597	597
34	864	635	635
36	914	673	673
38	965	711	711
40	1016	749	749
42	1067	762	711
44	1118	813	762
46	1168	851	800
48	1219	889	838

Reducing Tee Dimension

Nominal Pipe Size	Outside diameter at bevel	Center-to-End
Nominal Pipe Size	Outside diameter at bevel	Run (C)	Outlet(M)
1/2″	21.3	25	25
3/4″	26.7	29	29
1″	33.4	38	38
1 1/4″	42.2	48	48
1 1/2″	48.3	57	57
2″	60.3	64	64
2 1/2″	73.0	76	76
3″	88.9	86	86
3 1/2″	101.6	95	95
4″	114.3	105	105
5″	141.3	124	124
6″	168.3	143	143
8″	219.1	178	178
10″	273.0	216	216
12″	323.8	254	254
14″	355.6	279	279
16″	406.4	305	305
18″	457.0	343	343
20″	508.0	381	381
22″	559.0	419	419
24″	610.0	432	432

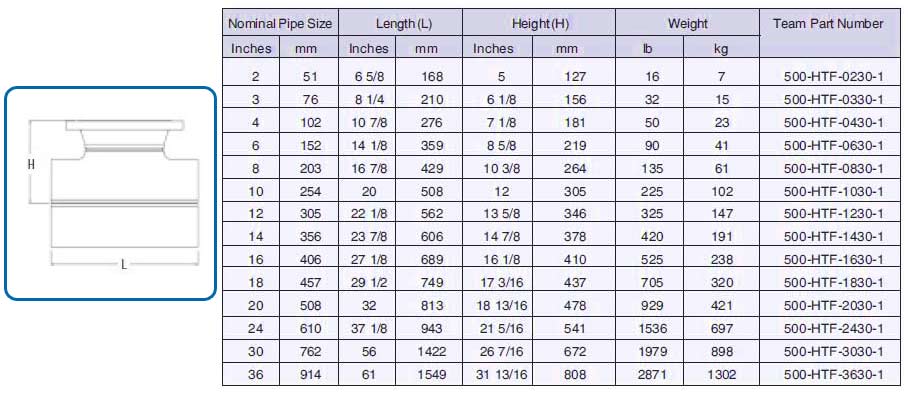

Split Tee Dimensions

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Manufacturer and Supplier of Equal/ Reducing/ Split Tee in Doha, Qatar

Yousef Metals, one of the leading suppliers of Equal/ Reducing/ Split Tee in Doha, Qatar, offers a wide selection of high-quality pipe fittings suitable for various industrial applications. With an extensive inventory, reliable sourcing, and a strong commitment to quality, service, and timely delivery, Yousef Metals has established itself as a trusted name for premium stainless steel products across the Qatar.

Monel Reducing Tee Size Chart, Stainless Steel Tee Fittings Price in Doha, Duplex Steel Equal Tee Weight Chart, Alloy Steel Reducing Tee Supplier in Al Rayyan, Incoloy Reducing Tee Stockist in Al Wakrah, Inconel Unequal Tee Supplier in Al Shahaniya, Copper Nickel Split Tee Price List in Al Khor, Alloy Steel Pipe Fittings Supplier in Umm Salal, Alloy Steel Reducer Exporter in Qatar, Carbon Steel Unequal Tee Exporter in Al Khor, Titanium Reducing Tee Exporter in Al Rayyan, Monel Buttweld Reducing Tee in Al Shahaniya

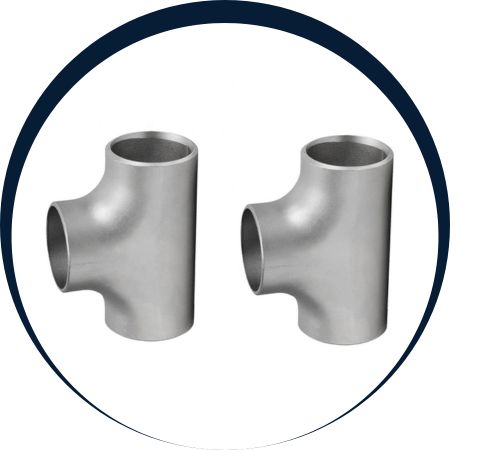

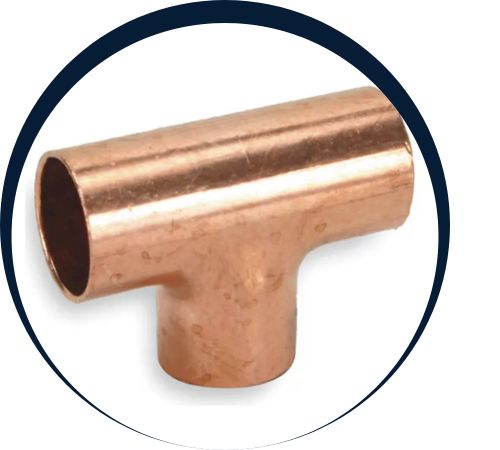

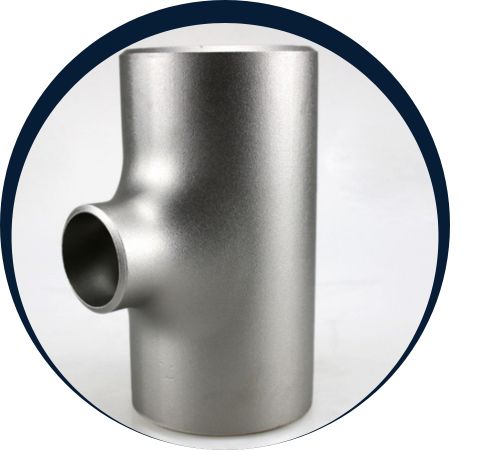

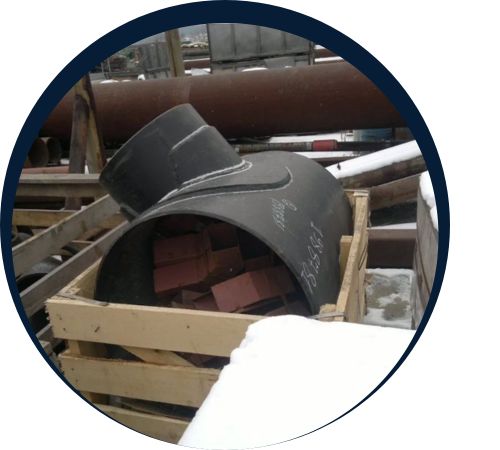

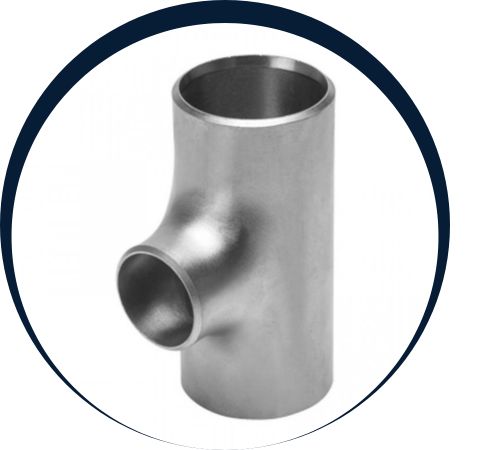

Types of Equal/ Reducing/ Split Tee

Are Custom Sizes Available for Equal/ Reducing/ Split Tee?

Yes, we provide custom sizes of Equal/ Reducing/ Split Tee to match your exact project requirements. Yousef Metals deliver tailored solutions designed to meet your specific project requirements, ensuring superior performance and reliability in every application. For more information or personalized assistance, reach out to us at sales@yousefmetals.com.

Nickel Alloy Tee in Qatar, Duplex Steel Buttweld Reducing Tee Distributor in Al Khor, Alloy Steel Reducing Tee Supplier in Umm Salal, Copper Nickel Alloy Tee Weight Chart, Incoloy Unequal Tee Exporter in Al Shahaniya, Stainless Steel Buttweld Reducing Tee Manufacturer in Al Wakrah, Duplex Steel Split Tee Price List in Al Shahaniya, Hastelloy Tee Sizes in mm, Monel Reducing Tee Distributor in Doha

You can find equal, reducing, and split tees from Yousef Metals in a variety of piping systems where they expertly control and direct fluid flow. They’re commonly used in oil and gas pipelines, chemical processing plants, refineries, power stations, marine systems, and water treatment facilities. Additionally, they play a vital role in HVAC systems, industrial fluid transport lines, and pressure piping networks. These tees not only ensure efficient flow distribution but also allow for easy installation and leak-proof performance, making them perfect for both onshore and offshore projects that operate in tough conditions.
